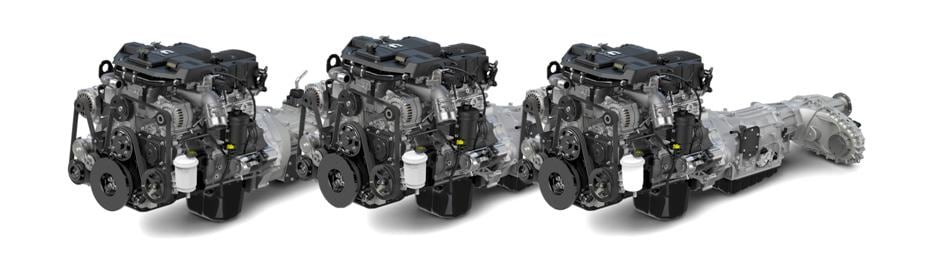

6.7L Turbo Diesel I6 with 6-Speed Manual (G56)

6.7L Turbo Disel I6 with 6-Speed Automatic (68RFE)

HIGH OUTPUT 6.7L TURBO DIESEL I6 with 6-Speed AISIN (AS69RC)



	Ram 2500/3500	Ford F-250/F-350	Chevy Silverado/ GMC Sierra 2500/3500
Displacement	6.7L I6 Turbo	6.7L V8 Turbo	6.6L V8 Turbo
Maximum Horsepower	2500 = 370  3500 = 385	400	397
Maximum Torque (lb-ft)	2500 = 800* 3500 = 850	800	765



RAM 2500 Unsurpassed available torque in the 2500 class Available with 6-speed auto with Electronic Range Select and tow/haul mode Backed by 5-Year/100,000-Mile Powertrain Limited Warranty

RAM 3500 Best in Class available torque in the 3500 class Available class-exclusive 6-speed manual - only 6-speed manual offered in 3500 diesel Available with 6-speed auto with Electronic Range Select and tow/haul mode Backed by 5-year/100,000-Mile Powertrain Limited Warranty



New Diesel Exhaust Fluid System

New state-of-the-art Diesel Exhaust Fluid/Selective Catalytic Reduction emissions control system

    - Incorporate of an electric heater into the DEF tank (rather than running glycol lines throughout the system) to ensure the DEF  fluid is always in a liquid state regardless of temperature
    - Passively cooled DEF injector that does not require engine coolant to control temperature
    - Enhanced DEF consumption and to create a system that requires less energy from the engine to reach target exhaust temperatures for optimal emissions conversion

Result is a less complex system (conventional iterations have used a network of glycol-circulated cooling/heating lines) for enhanced durability and reduced chance of malfunction
